Basic Attributes
- Product Type: DC PV Combiner Box
- Input Configuration: 1 Input
- Output Configuration: 1 Output
- Rated Voltage: DC 1000V
- Input Protection: PV fuse
- Surge Protection: DC SPD
- Output Protection: DC circuit breaker
- Connection Method: PV connectors
- Installation: Wall-mounted
- Application: Single-string PV systems
Product Description and Features
Compact 1000V PV Combiner Box

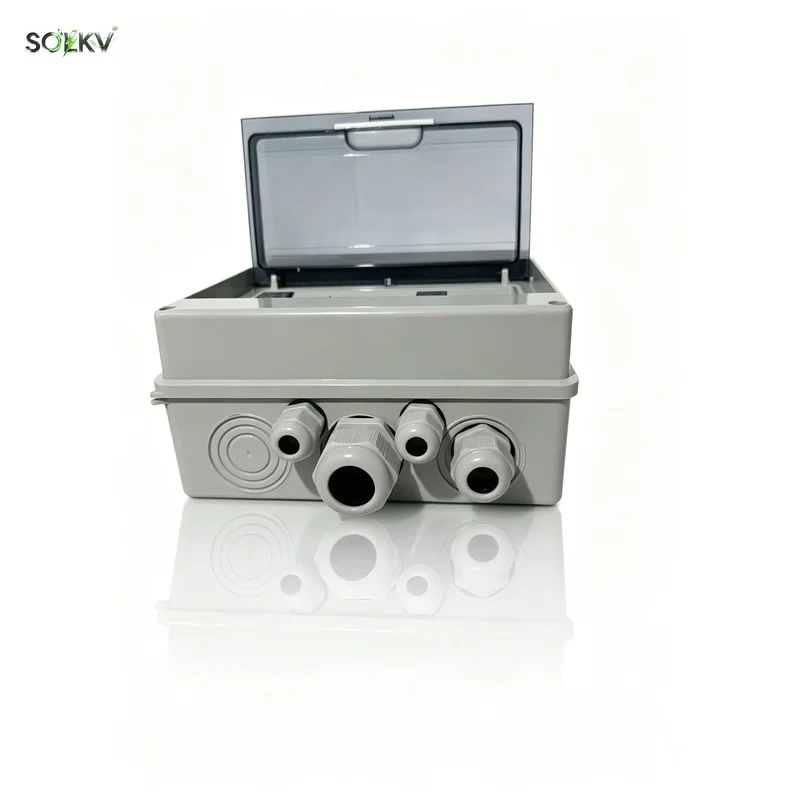

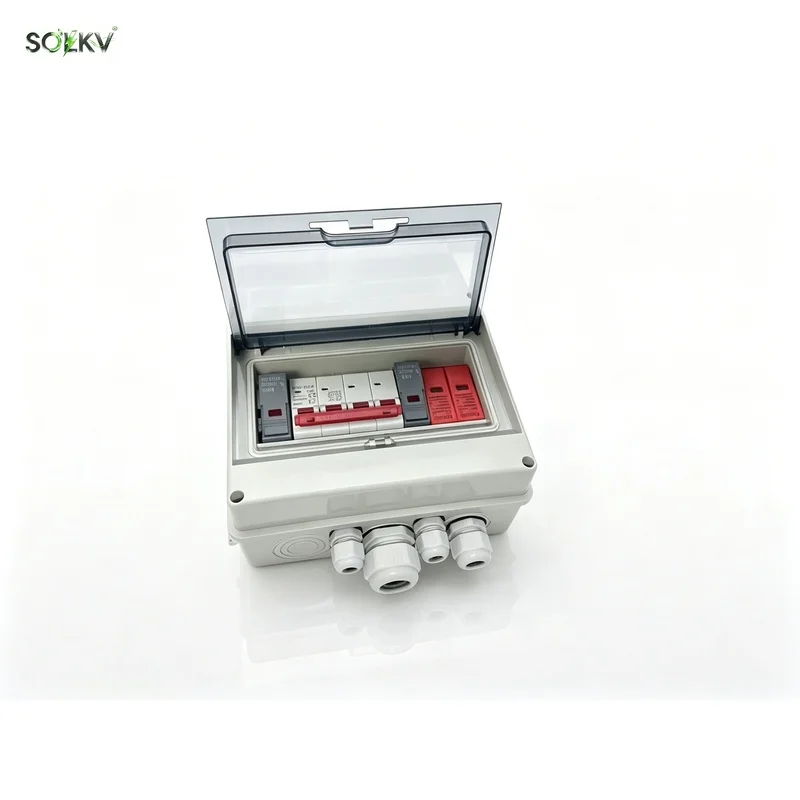

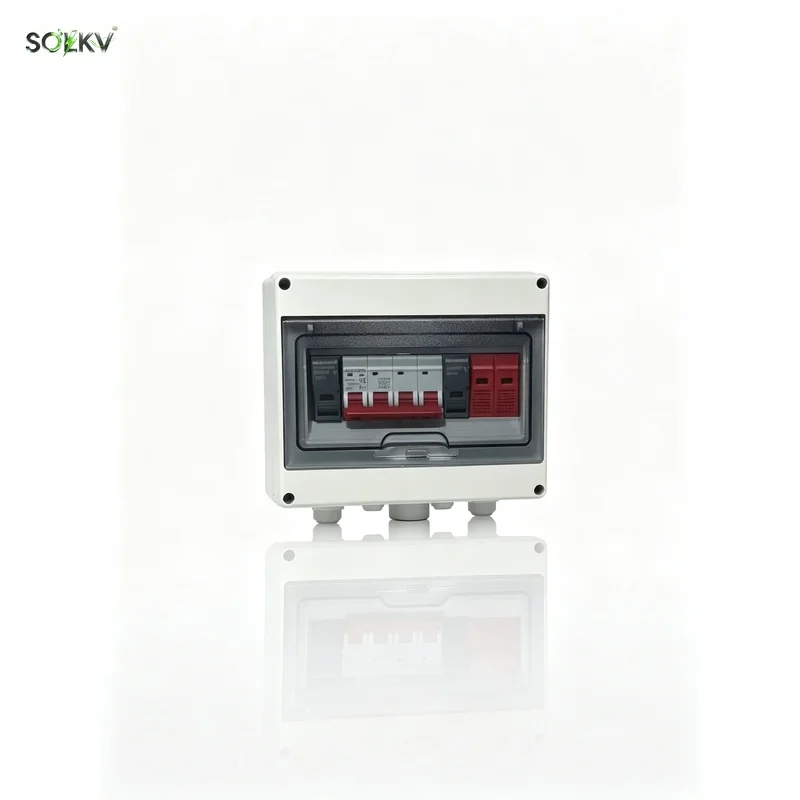

The 1000V DC PV Combiner Box 1-In 1-Out is designed for the connection and protection of a single photovoltaic string. Installed between the solar modules and the inverter, it combines essential DC protection components within one compact enclosure.
The input circuit can be equipped with a photovoltaic fuse to protect against overcurrent and reverse-current conditions. The built-in DC surge protective device helps limit transient overvoltage and reduce the risk of damage to the inverter and other photovoltaic equipment.
A DC circuit breaker provides circuit isolation and enables the PV string to be disconnected during installation, inspection or maintenance. The internal component layout is clear and accessible, helping installers complete wiring and servicing efficiently.
This 1-in-1-out PV combiner box is suitable for residential rooftop installations, off-grid solar systems, small commercial PV arrays and other applications requiring a compact 1000V DC protection and connection solution.
Fuse ratings, circuit breaker ratings, connector types, labels and packaging can be customized for OEM customers, distributors and photovoltaic project contractors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC PV Combiner Box |
| Input / Output | 1 Input / 1 Output |
| Rated Voltage | DC 1000V |
| Input Protection | PV fuse |
| Surge Protection | DC SPD |
| Output Protection | DC circuit breaker |
| Connection Type | PV connectors |
| Enclosure | Insulating enclosure |
| Mounting Method | Wall-mounted |
| Application | Single-string PV systems |

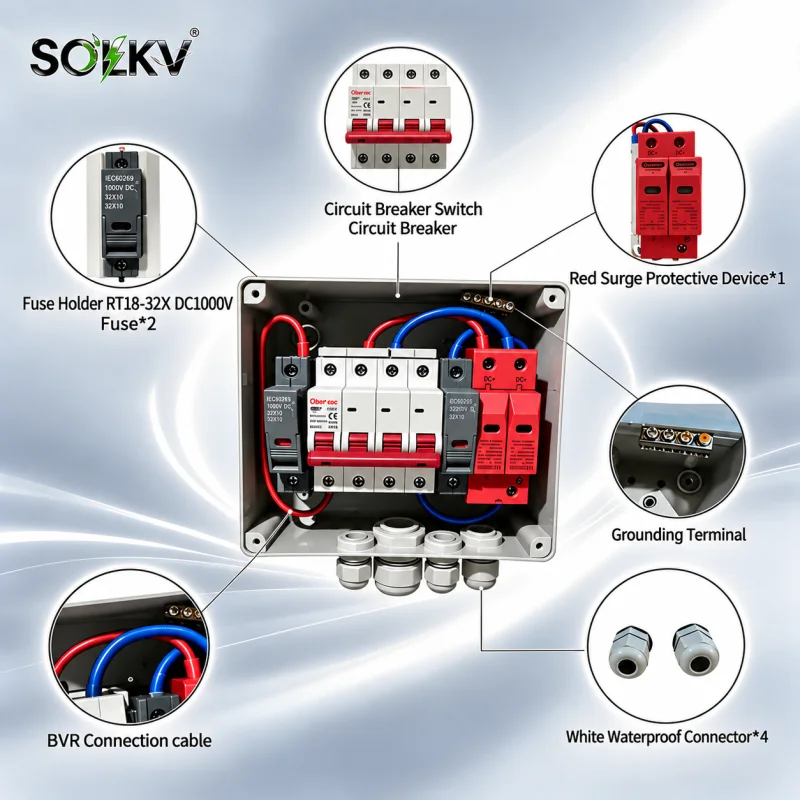

Product decomposition diagram
FAQ
What information is required when selecting a PV combiner or protection box?
Please provide the maximum system voltage, number of PV string inputs and outputs, maximum current per string, required surge protection level, connector type and installation environment.
Can the fuse and circuit breaker ratings be customized?
Yes. Fuse, breaker, surge protector and connector ratings can be configured according to the PV string current, inverter requirements and project specifications.
Are OEM and private-label services available?
Yes. SOLKV can provide customized logos, labels, packaging, connection methods and internal component configurations for distributors and project customers.
Why use a 1-in-1-out PV combiner box?
It centralizes fuse, surge and circuit isolation protection for a single photovoltaic string, creating a safer and more organized DC connection.
